Topic: Battlebots made with projection equipment parts&components

Matthew Bailey
Master Film Handler

Posts: 461
From: Port Arthur,TX
Registered: Sep 2000

posted 11-09-2000 04:29 PM

Has any one ssen Battlebots on Comedy
Central? I have. I am wondering if you
can make your own battlebot using parts
and components from various brands of
soundheads,projector heads,platters,etc.
such as Simplex and Christie for example.

| IP: Logged

Jon Bartow
Master Film Handler

Posts: 287
From: Massachusetts
Registered: Nov 1999

posted 11-09-2000 07:04 PM

What would you use for a weapon? a spinning shutter blade? (or a double shutter?!?) Or you could "knock" them to death with a bad intermittent. Perhaps you could just create an oil slick by using a simplex with bad door seals.
P.S. light-weight or heavy-weight?

| IP: Logged

Tom Sauter
Expert Film Handler

Posts: 163
From: Buffalo, NY, USA
Registered: Sep 2000

posted 11-10-2000 11:19 AM

It could wrap its opponents in polyester film, rendering them immobile. Perhaps a bit of nitrate to liven things up...

| IP: Logged

Mark Gulbrandsen
Resident Trollmaster

Posts: 16657
From: Music City
Registered: Jun 99

posted 11-10-2000 02:20 PM

The base for mine would be from a Norelco AA-2. It weighs 280 lbs, and is solid cast iron. It would run everything right off the stage. No need for flame throwers or rotating saw blades here. The brute force and well aged super hard cast iron is all that is needed. The only drawback would be the highly complex inertia conbtrol system it would need to be able to turn on a dime.
Mark

| IP: Logged

John Pytlak
Film God

Posts: 9987
From: Rochester, NY 14650-1922
Registered: Jan 2000

posted 11-10-2000 02:41 PM

DP70 vs. DLP ?

(70 mm Film vs. Digital Cinema, viewed at a distance of 60 feet from a 30 x 66 foot screen.)

I would bet on the 45 year old projection technology that you can still buy (used) today at less than 1/20 the cost!

Link to photo of Norelco DP70 on Stefan Adler's widescreen website: http://www1.tripnet.se/~adler/widescreen/dp70.html

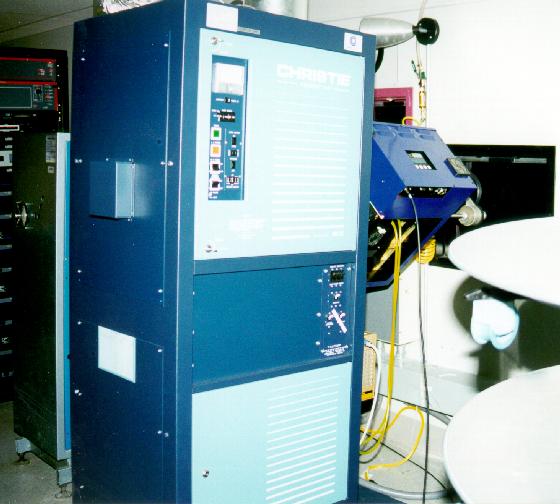

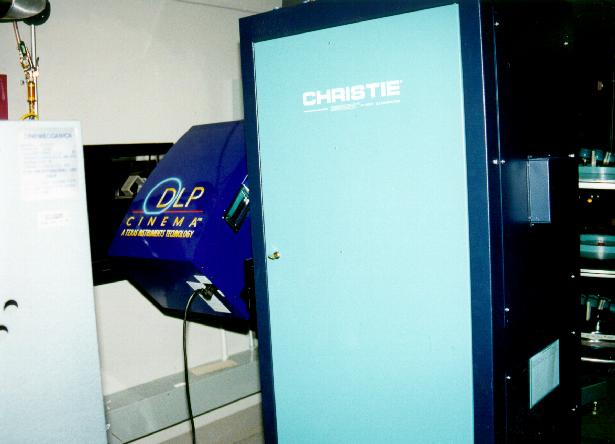

Links to Scott Norwood's photos of DLP Cinema projector at GCC Framingham MA:
http://www.redballoon.net/~snorwood/pics/gccdlp2.jpg

http://www.redballoon.net/~snorwood/pics/gccdlp4.jpg

------------------
John P. Pytlak, Senior Technical Specialist
Worldwide Technical Services, Entertainment Imaging
Eastman Kodak Company
Research Labs, Building 69, Room 7419
Rochester, New York, 14650-1922 USA
Tel: 716-477-5325 Fax: 716-722-7243
E-Mail: john.pytlak@kodak.com

| IP: Logged

Scott Norwood
Film God

Posts: 8146
From: Boston, MA. USA (1774.21 miles northeast of Dallas)
Registered: Jun 99

posted 11-10-2000 02:59 PM

It would be hard for _anything_ to compete with a Norelco, except perhaps one of the big old Bauer 35/70s (with the odd square magazines).

Simplex/Century/etc. would be no competition, let alone DLP.

| IP: Logged

Mark Gulbrandsen
Resident Trollmaster

Posts: 16657
From: Music City
Registered: Jun 99

posted 11-10-2000 05:27 PM

Guys,
Its the well aged cast iron thats the main thing here. There is not much that can destroy it. The rotating saw from another Battlebot might cause a few sparks but that would be the teeth comming off of the saw! The base would of course be driven by the 3 phase 20 HP Imax drive motor for instant stopping and starting. Integrating the International Space Station Gyros would provide the ultimate in stability. The shear weight would simply crush the other Battlebots. No contest!
Mark

| IP: Logged

Ben Wales
Jedi Master Film Handler

Posts: 602
From: Southampton. England
Registered: Jul 99

posted 11-10-2000 05:39 PM

How about a pair of Kalee 21's on the their original "Elephant feet base", having a duel with DLP Projectors, now that's what you call a real heavy weight!

| IP: Logged

John Walsh
Film God

Posts: 2490
From: Connecticut, USA, Earth, Milky Way
Registered: Oct 1999

posted 11-10-2000 10:49 PM

What about two of those monster RCA/Brenkert pedestals (with the disconnect switch and carbon storage shelf?) Arrange them like feet, making them walk forward. Put a motor/generator set on top of each foot to provide the mechanical and electrical power. Anything that gets stepped on with both feet gets cooked with 70 volts at 400 amps.

Top it off with that ulgy Soviet knock-off of a AA-II. (The real AA-II, while certainly heavy, still looks too elegant.) Add extensions to the sprocket shafts and put on saws with diamond-tipped teeth.

| IP: Logged

Randy Stankey
Film God

Posts: 6539
From: Erie, Pennsylvania
Registered: Jun 99

posted 11-12-2000 08:38 PM

The pojector part that I'd use in a Battlebot would be the POWER SUPPLY!!!

Put the bare ends of the output leads on the end of an arm and ram them into the opponent's robot. If you hit anything critical, 150 amps could make the opponent practically burst into flames. Even if you didn't hit anything it'd still make a pretty good fireworks show!

Now, how to we get power to the thing? Anybody got a spare generator lying around?

| IP: Logged

Matthew Bailey
Master Film Handler

Posts: 461
From: Port Arthur,TX
Registered: Sep 2000

posted 11-13-2000 05:11 PM

Other than radio controlled Battlebots,
I don't know if they would permit
cable connected robots in the arena.
If you haven't already,visit the official
Battlebots site at www.battlebots.com

| IP: Logged

Randy Stankey
Film God

Posts: 6539
From: Erie, Pennsylvania
Registered: Jun 99

posted 11-13-2000 05:52 PM

No, I'm sure they wouldn't let the thing in even if you could make it work without a cable. The damn thing would be just too damn DEADLY! Just imagine 150 amps going through the body of the person who went into the ring to retrieve their dead battlbot!

Still... If you could get enough battery power you might be able to use an igniter circuit and generate enough voltage (vs. the power supply's current) to create an electrical field to disrupt the opponent's radio receiver. (Igniters do that to sound systems all the time) Problem there is hardening YOUR receiver against your own attack!

| IP: Logged

Dave Bird
Jedi Master Film Handler

Posts: 777
From: Perth, Ontario, Canada
Registered: Jun 2000

posted 11-13-2000 06:12 PM

Sounds like the beginning of an "upstart league". Vince McMahon and Brad Miller's X-treme Battlebots. Banned in 48 states, 9 provinces, two territories and most of the British Empire!

| IP: Logged

Greg Mueller
Phenomenal Film Handler

Posts: 1687
From: Port Gamble, WA
Registered: Jun 99

posted 11-13-2000 06:38 PM

If you got some capacitors big enough you could charge them up and......

------------------
Greg Mueller
Amateur Astronomer, Machinist, Filmnut

| IP: Logged

John Walsh
Film God

Posts: 2490
From: Connecticut, USA, Earth, Milky Way
Registered: Oct 1999

posted 11-14-2000 08:25 PM

Yeah, get some big capacitors! You can "own" a farad... did anyone go to school in the days when they told you that a one farad cap would fill a room? Guess they were wrong.

They also taught us that a regular phone line would never allow anything faster than 2400 baud (using FSK.) Guess they were wrong about that, too.

| IP: Logged
