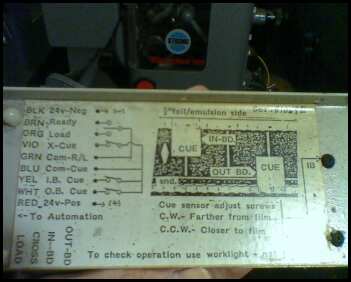

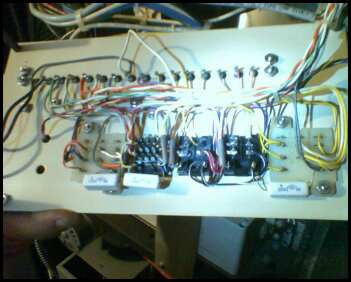

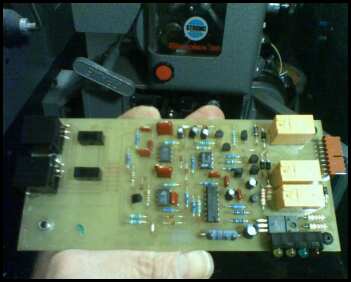

Author Topic: First post- Strong x90 problem, old town single screen William Brittain Film Handler Posts: 8 From: Mineola, Tx, USA Registered: Sep 2011 posted 09-26-2011 06:24 AM                        Hi, I'm new to the forum and requesting help for a small town theater with a Strong x90/simplex setup. We townies have taken our turns keeping the old place alive, currently as a non-profit historical operation. No formal training but I've had over four years there, self-taught, operating and maintaining the X90. It has been a jewel, year after year with only minor maintenance. Lately the automated start has been failing, it would engage then quit some way thru any show, now it won't engage at all. It runs as long as the button is held and quits when you let off. We really don't use the automation under the soundhead except as a failsafe, and I never saw an LED light up at the moment of shutdown, I don't believe that is the problem. Not sure what type of automation board it is either. If anyone with experience would be familiar enough to recognize this problem and clue us in, faulty relay or what, we do not have a budget for expensive service and sure would appreciate a DYI. We are using the manual toggle switches for now. Bill in East Texas  |  IP: Logged Dave Macaulay Film God Posts: 2321 From: Toronto, Canada Registered: Apr 2001 posted 09-26-2011 08:24 AM                     The automation model will be required before any advice can be given. Many types can be installed in your console. The Strong/Eprad SP-7 was popular but we need to know what you have. If ypu can't find a model number, a photo of the automation panel will help (generally the top unit in the rack space or at the top of the console)  |  IP: Logged Gordon McLeod Film God Posts: 9532 From: Toronto Ontario Canada Registered: Jun 99 posted 09-26-2011 08:50 AM                     And a photo of the failsafe  |  IP: Logged Monte L Fullmer Film God Posts: 8367 From: Nampa, Idaho, USA Registered: Nov 2004 posted 09-26-2011 10:49 AM                     ALmost sounds like a CPA-10 automation ... there is a battery inside that needs to be replaced... And, if the failsafe is a FP350, those wires going into the terminal block, one loves to work loose which will cause a break in the automation to shut down the unit.  |  IP: Logged William Brittain Film Handler Posts: 8 From: Mineola, Tx, USA Registered: Sep 2011 posted 09-27-2011 04:10 AM                        I did previously do a wiggle/jiggle to all associated wiring and plug connectors. The problem started as an intermittent fail then proceeded to be permanent. Everything is functioning fine in manual operation, and from my observation no relays on that automation board appeared to be active during manual start. There is relay action during attempted auto-start, but stops when the button is released. Ok starting with the racks, we only have a rudimentary sound system: Then above the lamphouse, what I've assumed is the automation but without printed description: Then to the failsafe also without identification that I could recognize: Sorry for the glare, I didn't see that at the time  |  IP: Logged Gordon McLeod Film God Posts: 9532 From: Toronto Ontario Canada Registered: Jun 99 posted 09-27-2011 08:46 AM                     That is a Raven/ Edlo automation and failsafe I would test the poser supply first the failsafe does need a stable 24vdc  |  IP: Logged Richard Fowler Film God Posts: 2392 From: Ft. Lauderdale, FL, USA Registered: Jun 2001 posted 09-27-2011 09:24 AM                     Raven...what a time trip  |  IP: Logged William Brittain Film Handler Posts: 8 From: Mineola, Tx, USA Registered: Sep 2011 posted 09-28-2011 01:42 AM                        Yes I did find 'Raven' on the printed side of the circuit board. Could you elaborate on finding the 24vdc power supply source location? Would that be the transformer on the upper left of the second photo? I will stop in for a look tomorrow between other jobs  |  IP: Logged William Brittain Film Handler Posts: 8 From: Mineola, Tx, USA Registered: Sep 2011 posted 10-01-2011 05:14 PM                        I had a brief time to put a meter on the transformer, in the top left of the second photo. 120vac going in but did not get any vdc reading on the output, the two red wires. Seems to indicate a dead transformer. Oddly enough my coworker tried the auto start circuit again and it engaged. ? Intermittent problem vanished - but I'm sure it would return during a run. What to do now? I guess I'll check individual solder joints for cracks, and double check that transformer...  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 10-01-2011 07:25 PM                     You won't get DC out of a transformer!! AC in >>>>> AC out excepting some wall worts that have a boilt in rectifier. Check again with your meter in AC...  |  IP: Logged
